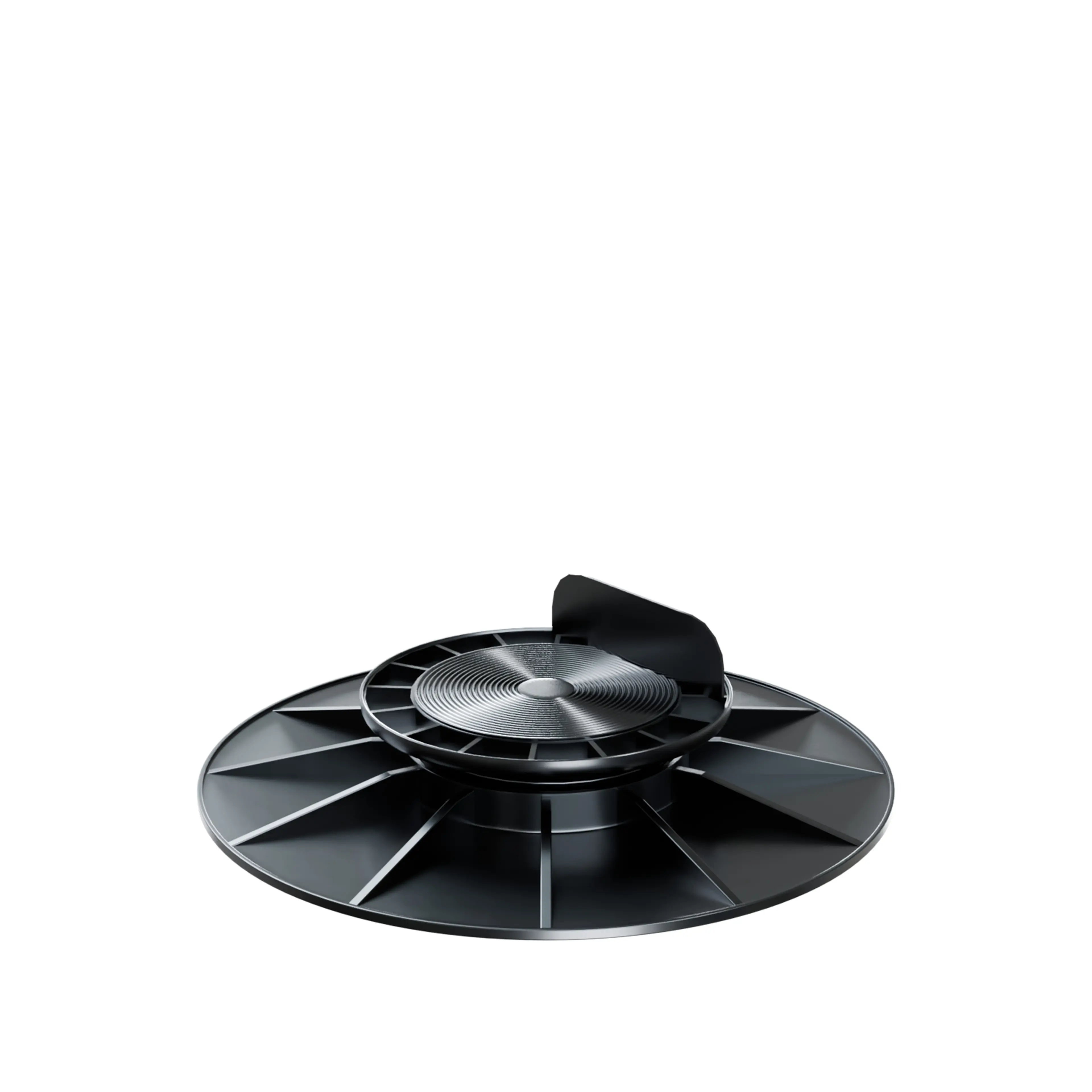

Pedestal NIVO H25-40mm joist

Adjustable pedestals with L-shaped head designed to support and level wood or aluminum joists. 5 sizes for elevations from 25 mm to 230 mm. Up to 530 mm with stackable 60 mm risers (max 5). Rotary ring for precise level adjustment of the structure. Each pedestal supports up to 800kg load. Weather and UV resistant. Stable 20cm base prevents sinking into the ground, ideal for use on waterproof flat roofs. Compliant with DTU 51-4 and 43-1.
See technical info
IconThink about your environmental responsibility. Before printing this document, ask yourself if you really need the paper version.

Product highlights

  • 800 kg load capacity
  • Precise adjustment
  • UV resistant
  • Recycled plastic
  • Made in France
bg

Environmental information

Lifetime> 20 years
Carbon emissions (kg)0.342
Recycled material (%)90 %
Recycled materialspolypropylene
Natural material (%)0 %
Main materialPolypropylene
Pedestal typeWooden and alu joist pedestal
Fasteners
Height adjustableYes
Max admissible charge (kg)1000
Frost resistantYes
Resists temperature variationsYes
Chemical resistantYes
Technical text conformityConforme aux DTU 51-4 et 43.1
